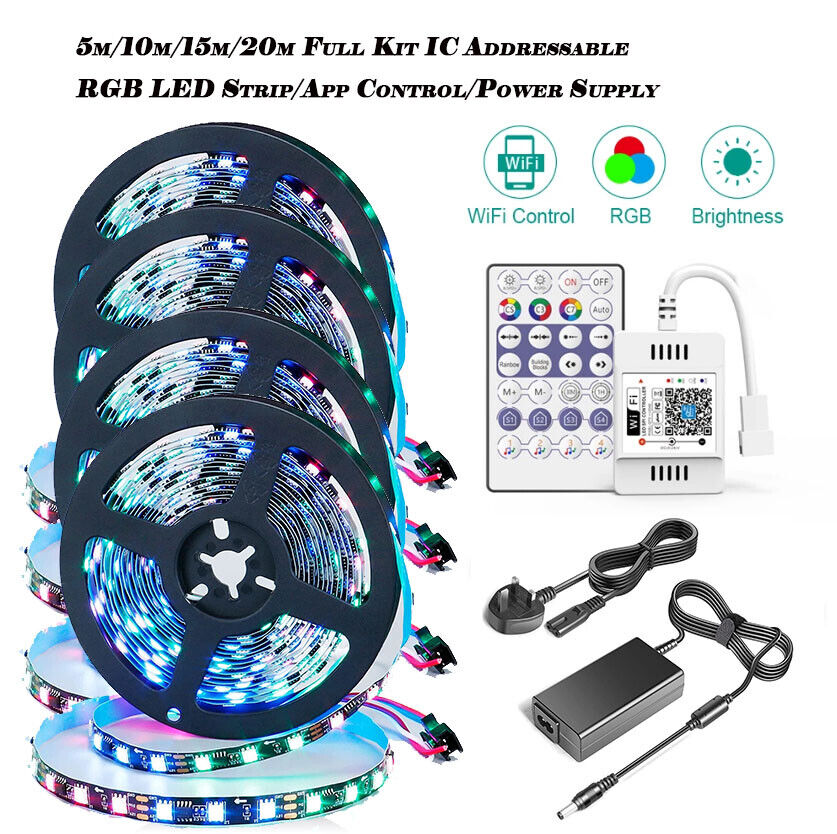

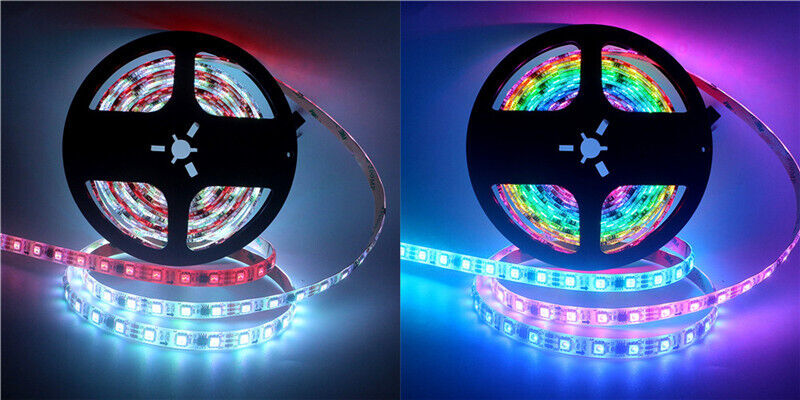

IC Addressable 12V WS2811 RGB LED Strip 20Pixels/m 5/10/15/20m Waterproof Kit
Price range: £7.95 through £99.00
Features
- Affordable High Quality IC LED Lights: We aim to provide best balanced IC LED lights both for quality and cost. Our IC LED strips are similar price as LED RGB strips.
- Smart APP Control & Voice Control: Use voice commands to turn the lights on/off, make them brighter, or choose your favourite colour via Alexa or Google Assistant. Even if you are not at home, you can also use Bluetooth local mode to connect without WiFi.

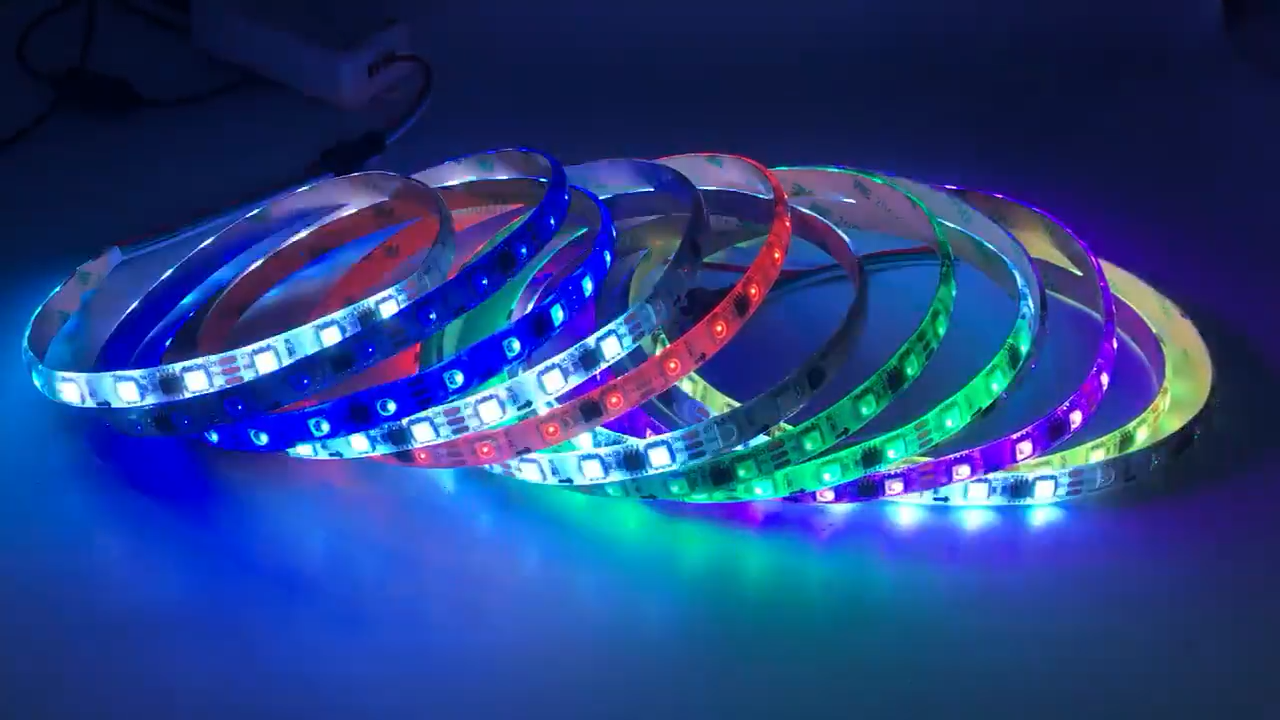

- RGBIC & RGB: Thanks to built-in IC chips, the LED lights can display multiple colours at one time. Instantly transform any room in your home with vibrant lighting colour effects
- Music Sync Mode: RGBIC LED Strip activated via music and ambient sound from your mobile phone App, which change colours and flashing speed. Also be lit according to external music.
- WIFI Wireless Control: Create a relaxing ambient light or disco party effects using Music Mode or set a weekly lighting schedule with the Timer function

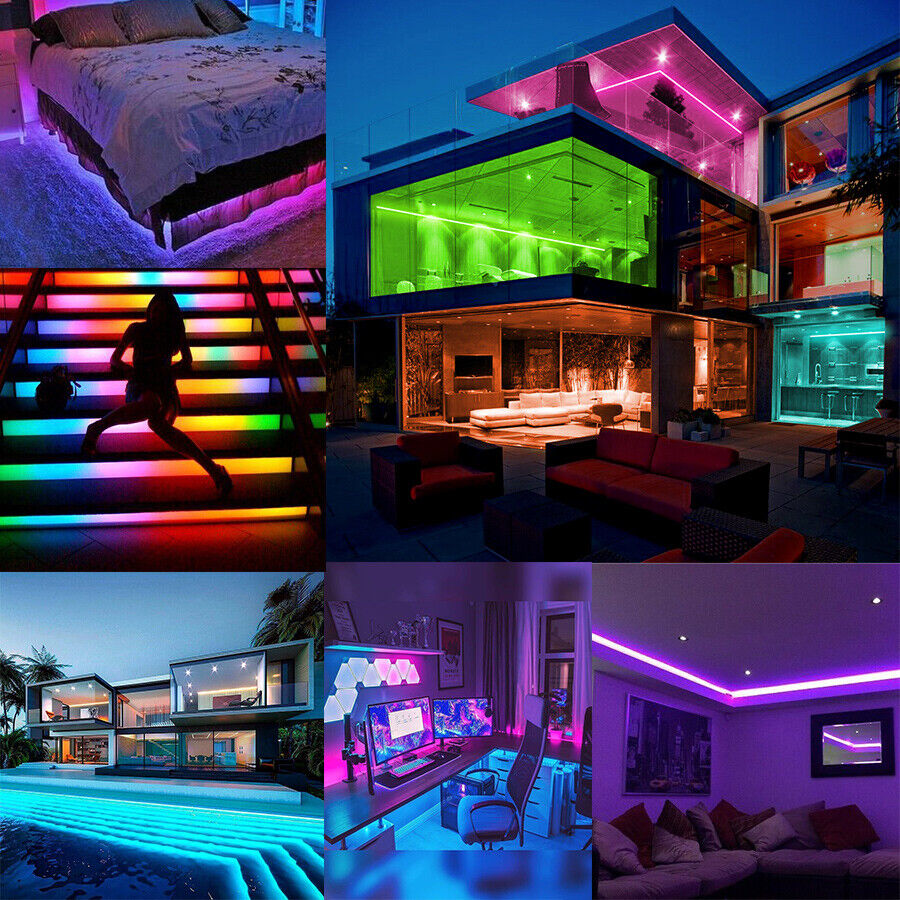

- Plug and Play: No additional accessories required as package comes with a 12V 4A UK adapter, a WiFi Controller,5m/16.4ft IP65 waterproof 5050 WS2811 Flexible strip. It’s great for decorating dining room, kitchen, porch, garden and living rooms.
- These light strips are IP65 and can be used outdoors but NOT directly to the sun and rain (will reduce the light life very badly) ( indoor only for the controller and power supply)
- Easy Installation: The all-in-one kit comes with a power adapter, a WIFI remote controller, and 1 roll of 5M WS2811 Individually Addressable LED strip. Simply use the adhesive and the support clips to firmly install your lights to any dry, clean surface
- Single Control for long distance: one single controller could run up to 40m LED strips.
- WS2811 24V/10m/roll is now available click to see

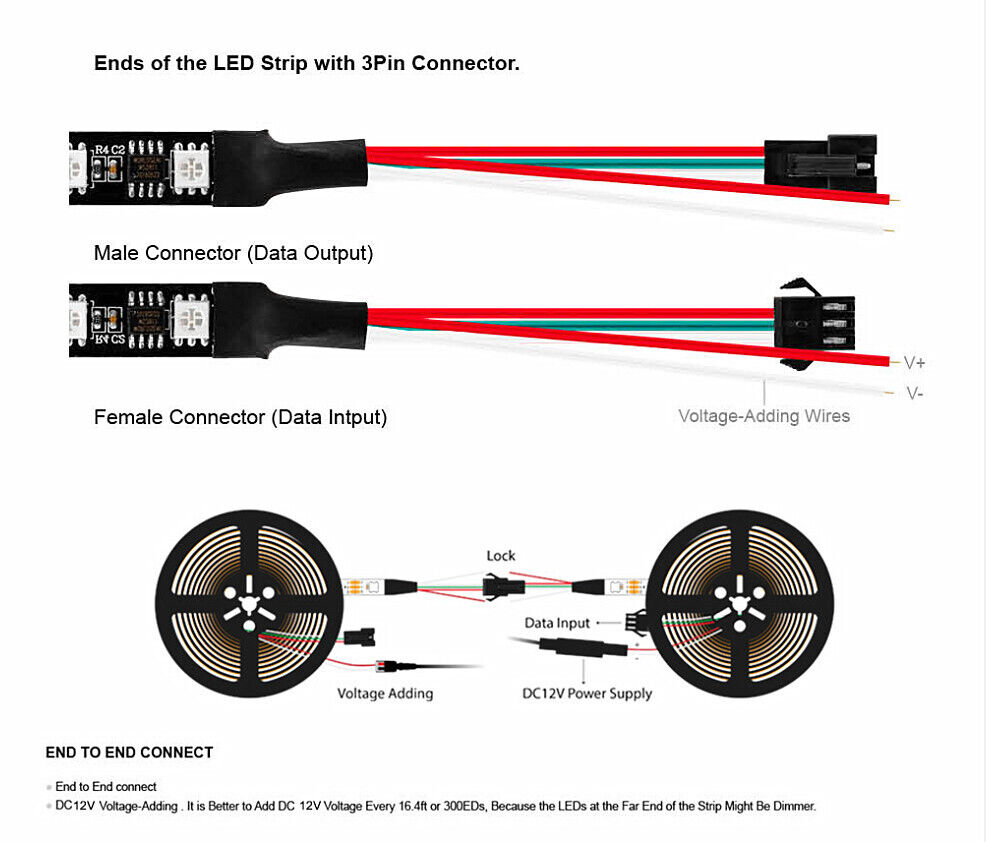

How to use single controller for long distance(10m/15m/20m)?
Connect LED strips by 3pin connectors and using supplied 4A PSU power the second strip. For example 10m:
1. Using the 4A PSU to connect the controller and the strip
2. Connect the first strip and the second strip, at the same time using another 4A PSU run the second strip( No Amplifiers Needed)
3. Switch On and job done
Custom Bundle Explain:
We are happy to offer customer’s own bundles. Please email me your own idea of Bundle including, then the quotation will be sent with an reference number.
If you agreed the price, you would pay for select option Custom Bundle with the reference number. For Example, one customer wants 40m strips and 2x Wifi controllers. If agreed price would be £99 , you then select the option Custom Bundle with amount 100 (single price is £0.99).
Tip: A single wifi controller can run maximum 20m strip in series connections.
How to connect Smart Device to my home network?
1. Install the App：
Search for “Magic Home Pro” on the App Store or Google Play Store, or scan the QR code below to download it.
2. (Important) connect your phone to home wifi network(2.4GHz WiFi only)
3. Power on the device
Now Setting:
Step 1：Register/Login account
If this is your first time to configure smart devices through the App, please register your Magic Home Pro cloud account first
Step 2: Add Devices
Open the App and click the “+” button in the upper right corner, then select “connect device to Wi-Fi network”.
Step 3: Open phone wi-fi interface and connect to the “LEDnetxxxxx” signal
Please open the mobile phone Wi-Fi interface according to the App prompt, and then select the “LEDnetxxxxx” Wi-Fi signal which comes from our smart device. After successful connection, go back to the Magic Home Pro App
Note: if you can not find “LEDnetxxxxx” Wi-Fi signal, you need reset the smart device.
For Wi-Fi light bulbs, wifi strip controller, please turn on/off for fours times to get it reset
For WiFi on/off switch, Wi-Fi outlet, Please long press the reset button for 8s to reset.
Step 4: Connect to your home network
Select your home network in the Wi-Fi i list and enter the correct Wi-Fi password
Note: after this step, the “LEDnetxxxxx” signal will disappear. If the Wi-Fi router password you input is incorrect, the smart device have to be reset before reconfiguration again
Step 5: Setting Completion
Enter the device name and click “complete”.
Step 6： Enable remote function (optional)
The remote access function must had been enabled in order to achieve remotely control, Alexa voice control, Google Home control, Siri shortcut voice control, widgets and other functions. Otherwise, they can not work
Specification

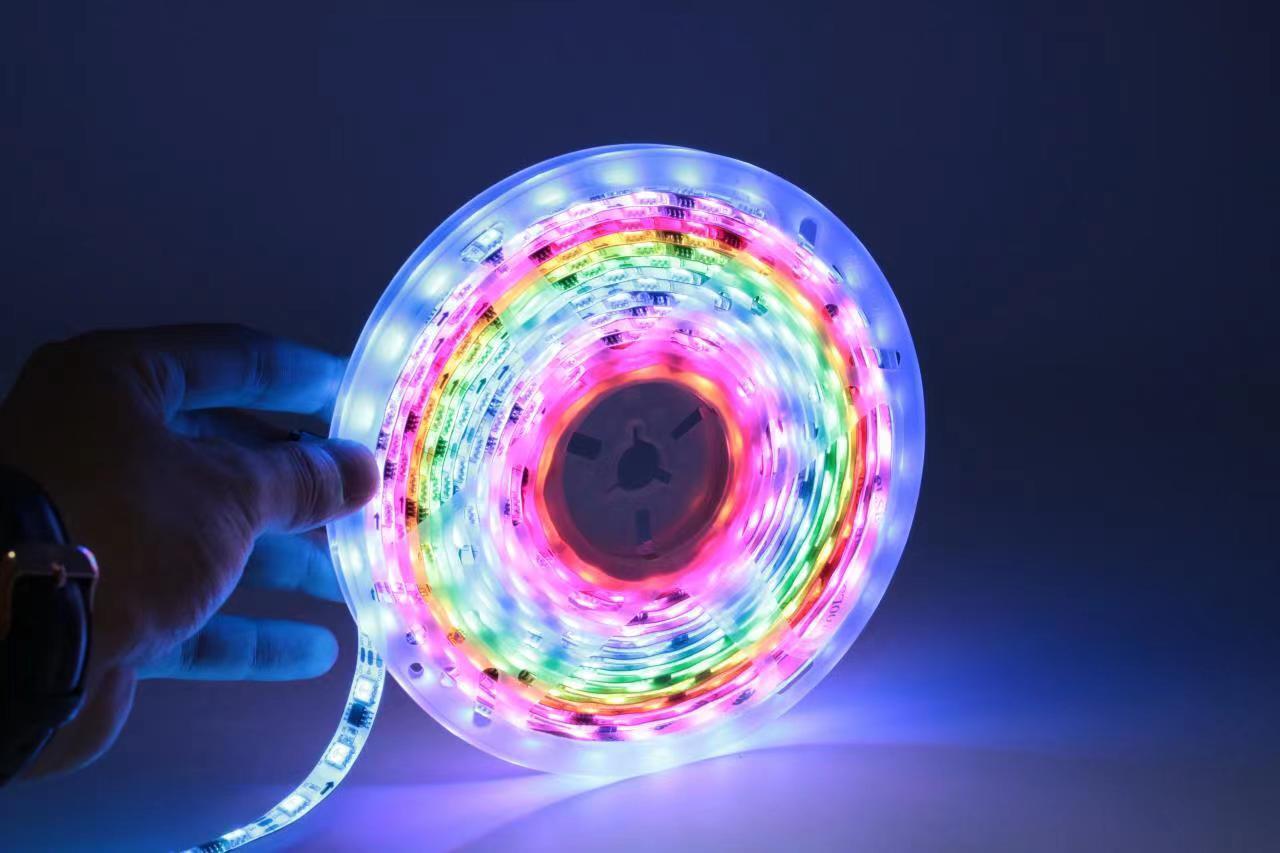

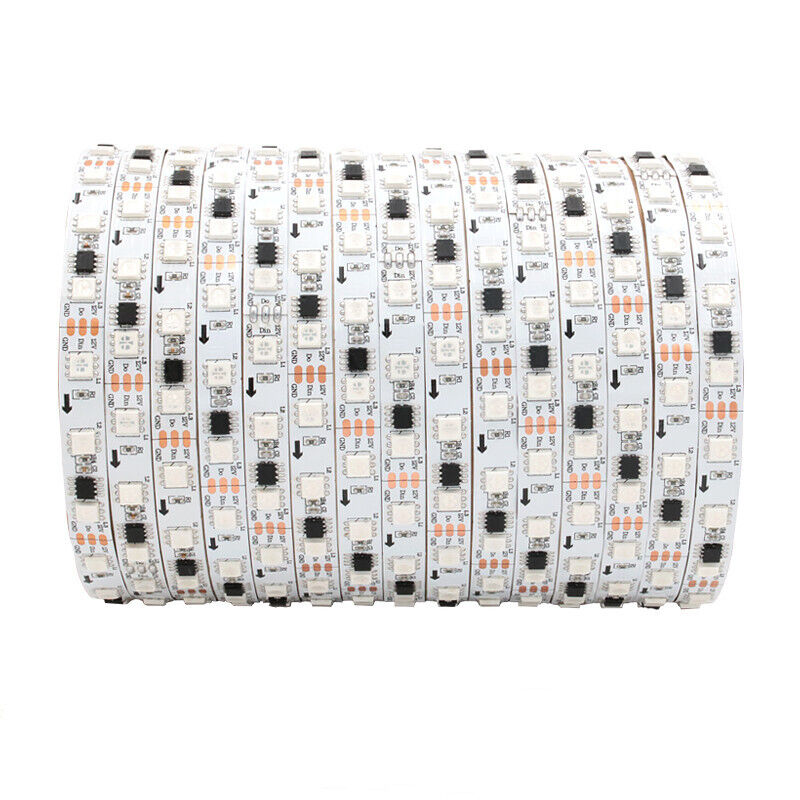

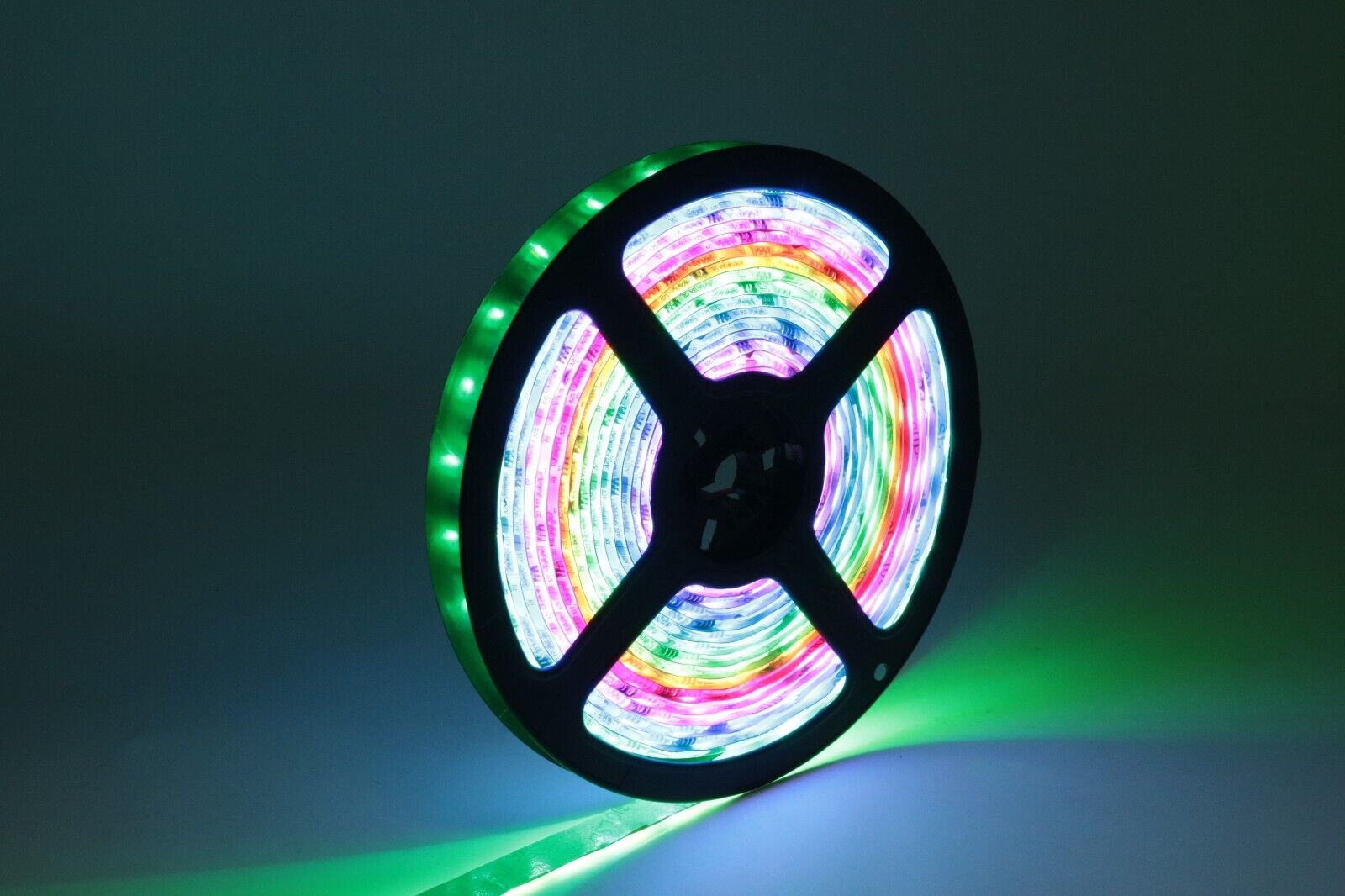

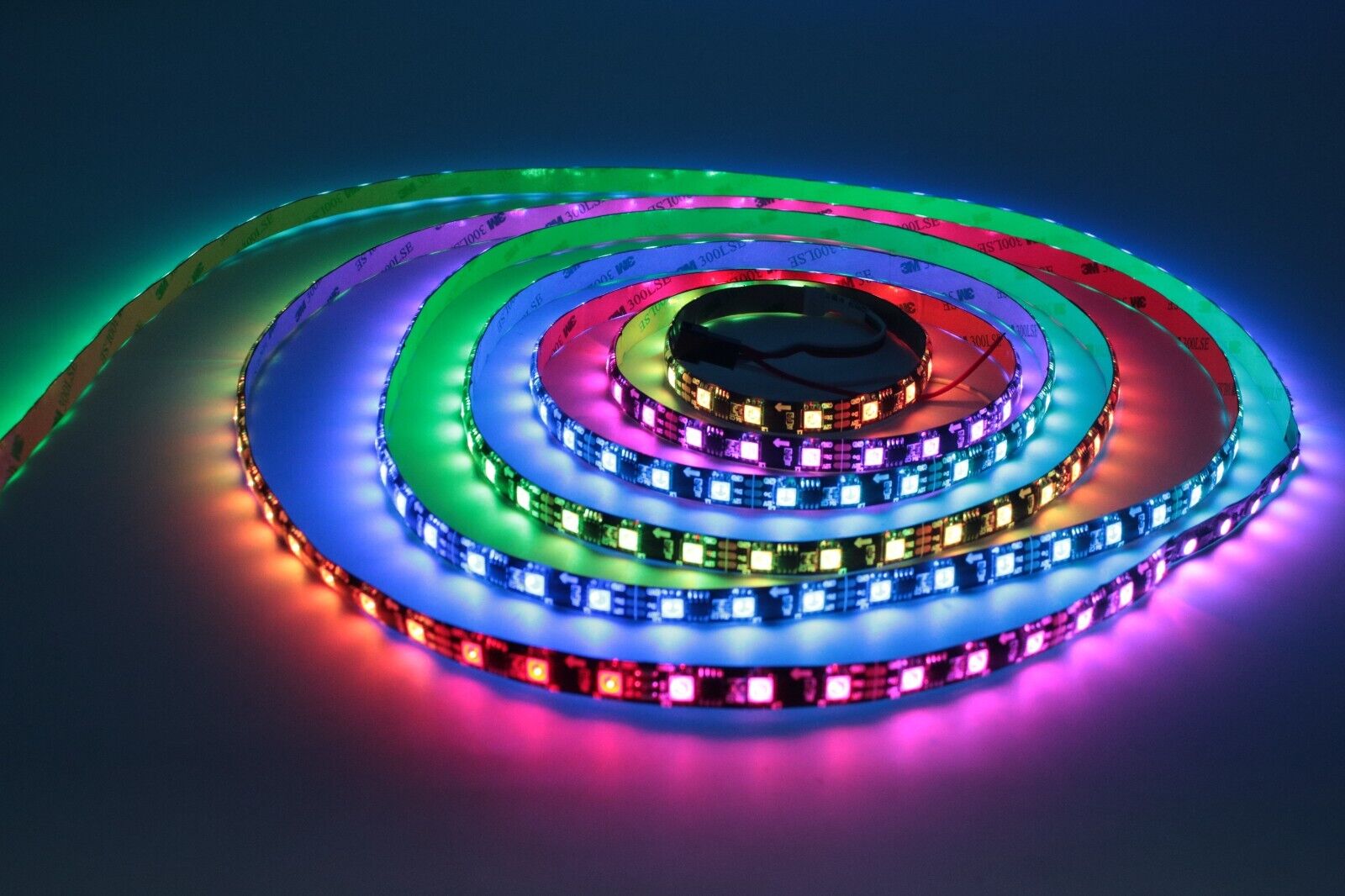

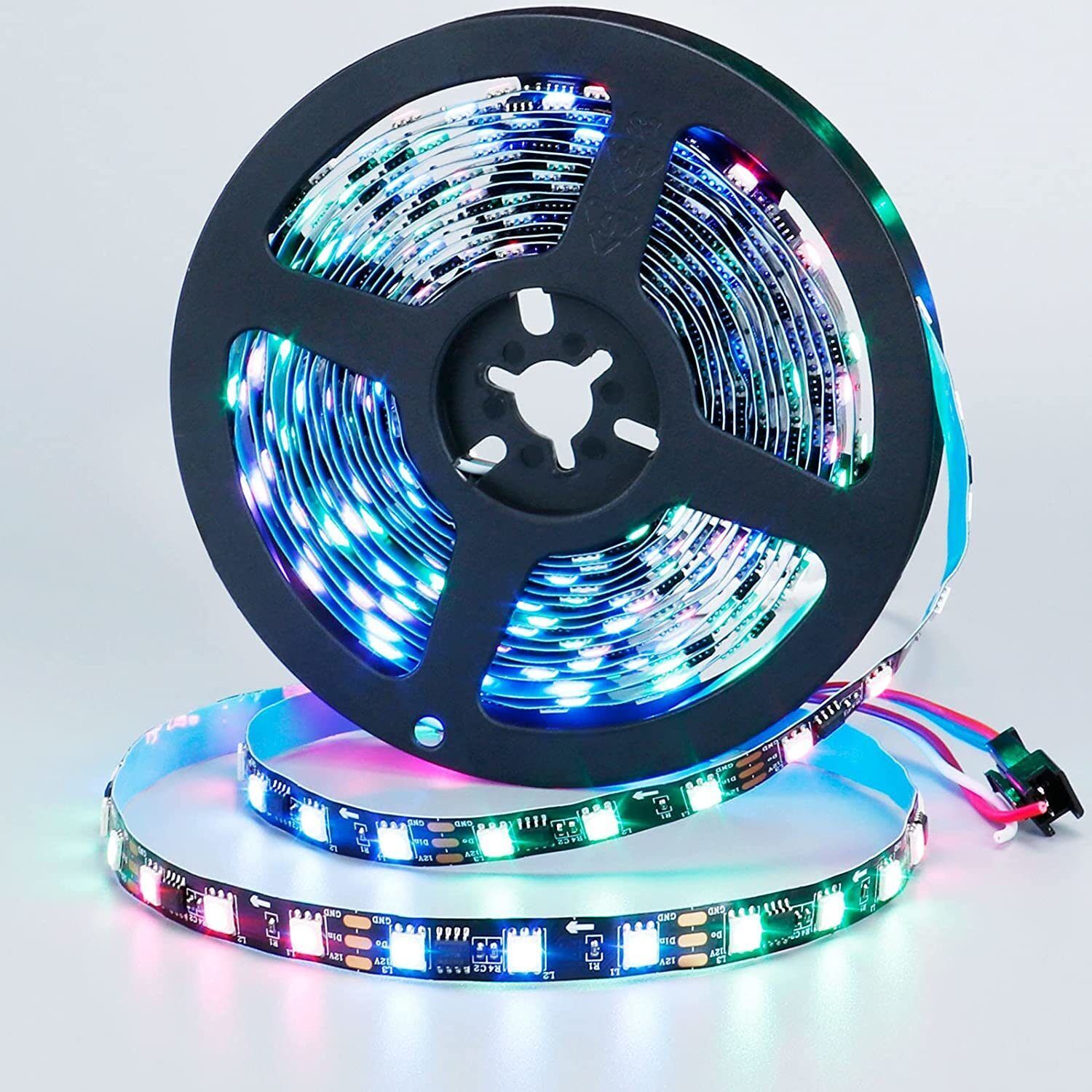

5m/16.4ft IC Addressable 12V 5050 RGB LED Strip
Mode: 12V RGB5050 IC LED Strip
IC Chips: UCS1903 ( 20IC/m)
Input voltage: DC12V
Led SMD Qty: 60pcs RGB SMD5050 per meter

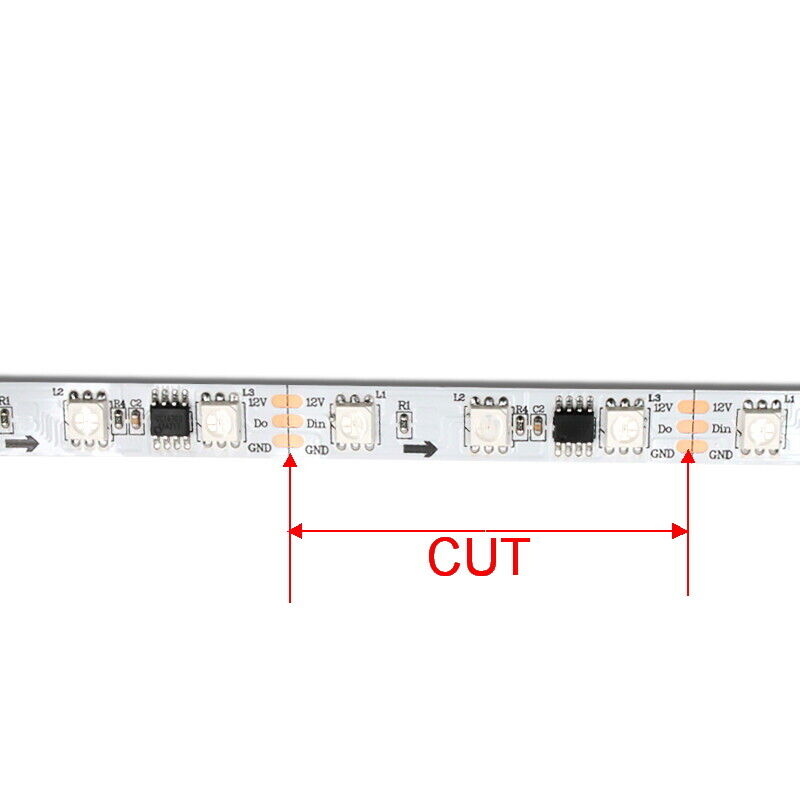

Cutability: 3 Leds / Cutting ( External 2811 ic, 1 ic control 3 LED )
Power:12W/m, total is 60W
Beam Angle: 120 °
Color Mode: 133Pattern & 100 Speeds
Signal: WS2811
Wave length(NM):R,650nm ; G,520nm ; B,460nm
View angle:120°
PCB color: White
Material: FPCB
Life span:≥50000hrs
Waterproof: IP65 waterproof
Approvals CE, RoHS

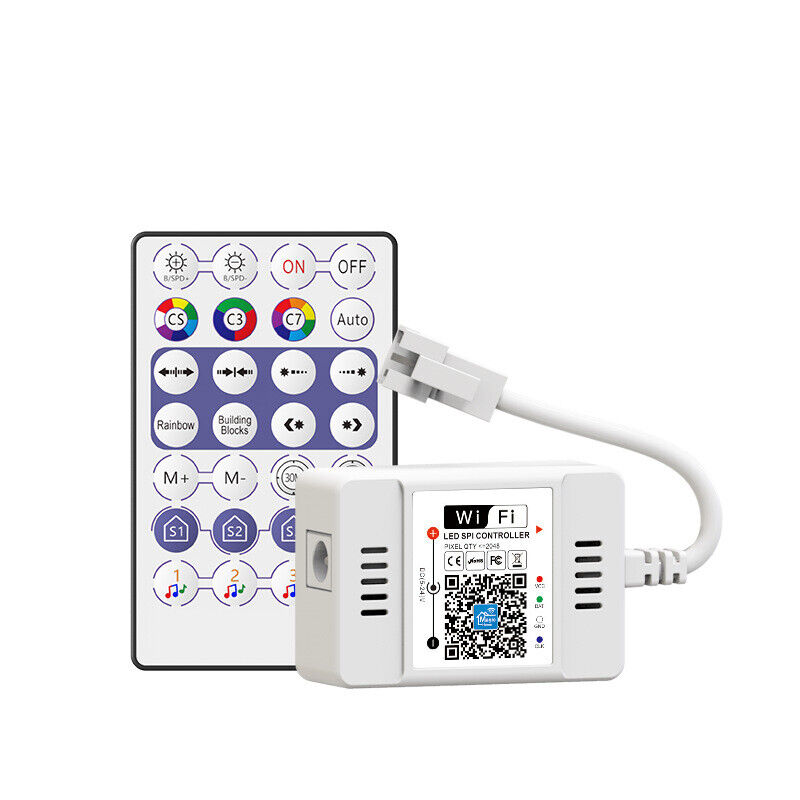

Smart SPI WiFi Controller for RGBIC WS2811, WS2812B LED Strip Light with Music Sync and Alexa Google Magic Home Pro App
Input: DC 5V, 12V and 24V
Output: 144W
Output Connections: 1(Wires)
Built in Device Microphones and App Microphones for Music Sync
24 Key Remote Control
Magic Home Pro (Free) App
Network: 2.4GHz Wifi

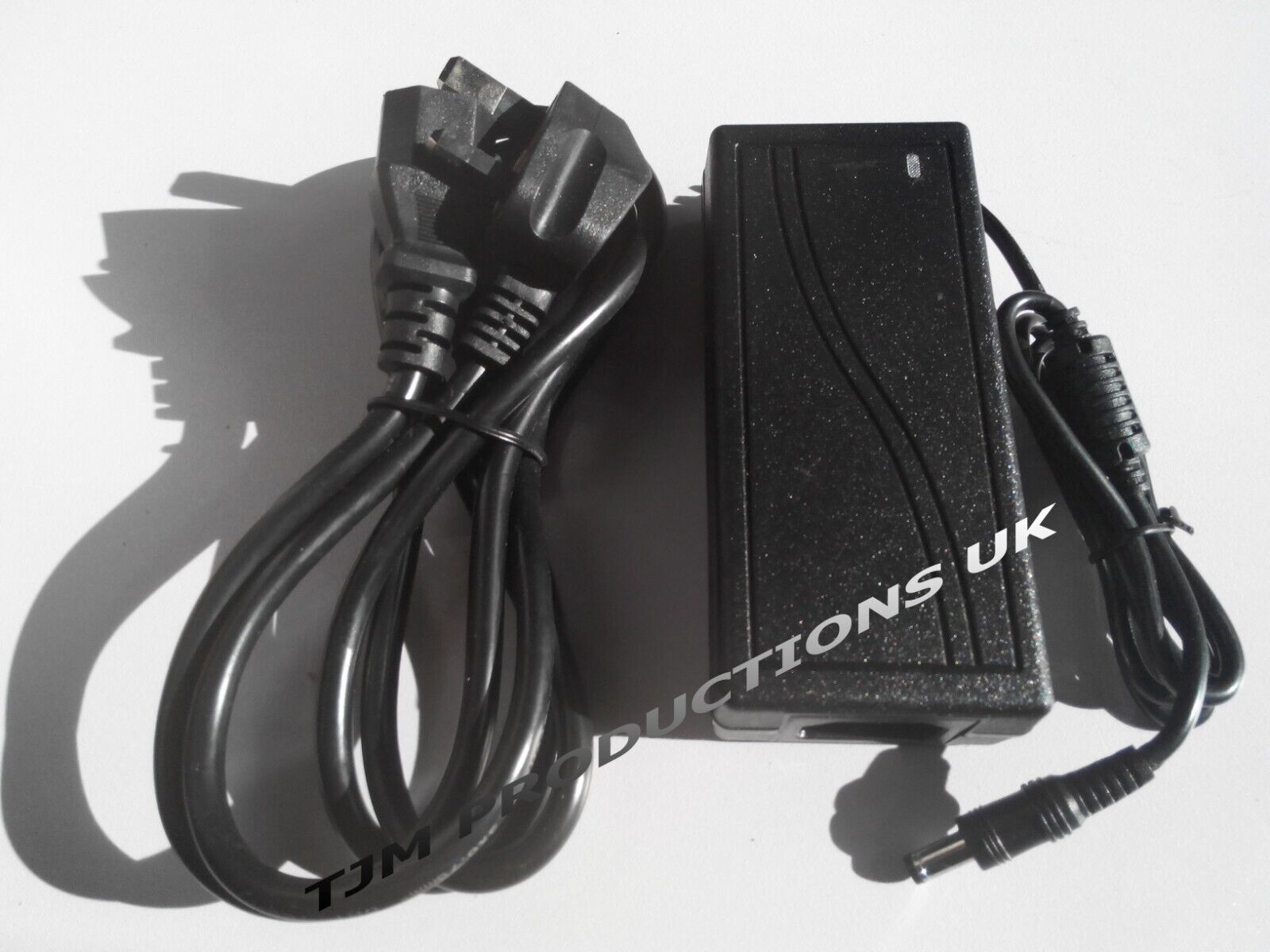

12V 4A 48W UK POWER ADAPTER
Mode: UK 3Pin (fused)
Output Voltage: 12V
Amp: 4A
Output Power: 48W
Input Voltage: 100-240V AC
Frequency: 50-60Hz
Use: Indoor
Dimension (L*W*H): 112x48x32mm
Warranty: 2 Years
Certifications: CE & RoHS
Package Including:

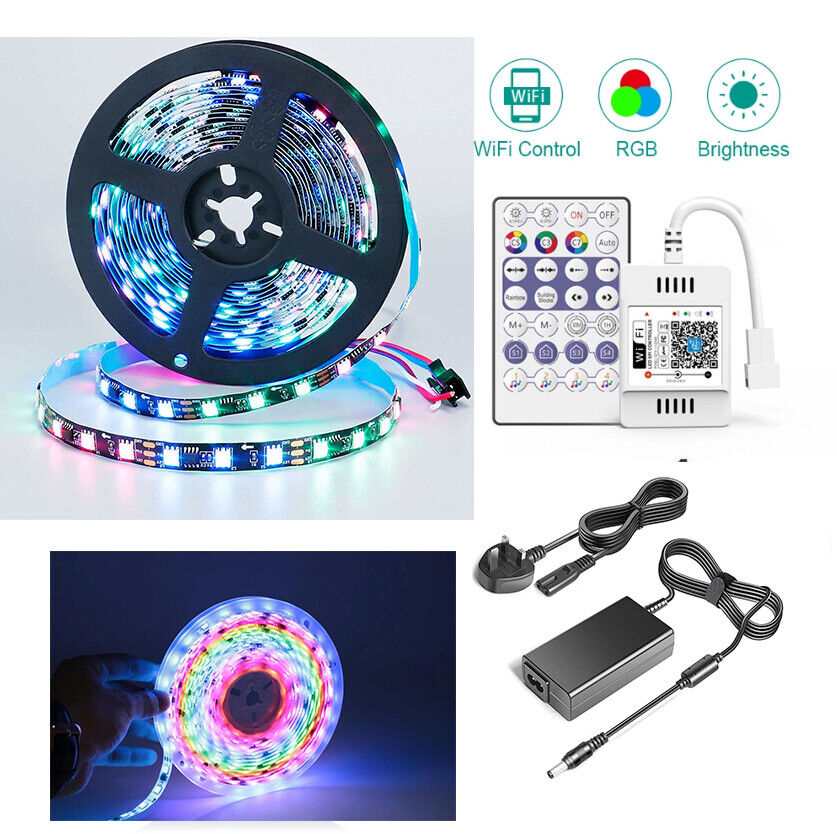

5m Full Kit:
1x5m IC Addressable 12V 5050 RGB LED Strip
1xSmart SPI WIFI Controller
1x12V 4A 48W POWER UK ADAPTER

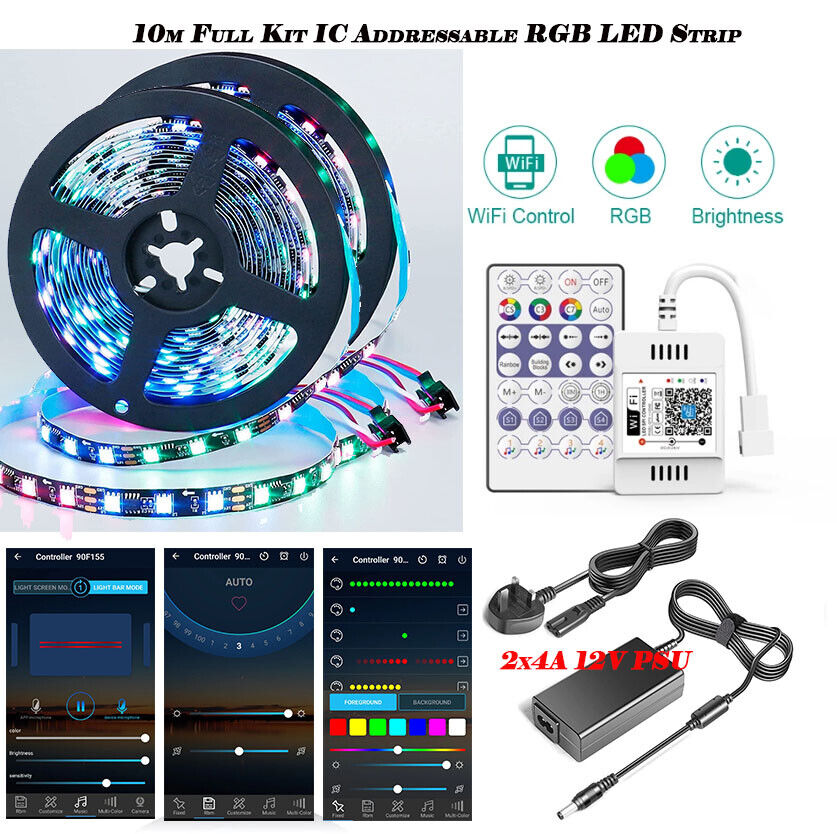

10m Full Kit:
2x5m IC Addressable 12V 5050 RGB LED Strip
1xSmart SPI WIFI Controller
2x12V 4A 48W POWER UK ADAPTER
15m Full Kit:
3x5m IC Addressable 12V 5050 RGB LED Strip
1xSmart SPI WIFI Controller
3x12V 4A 48W POWER UK ADAPTER

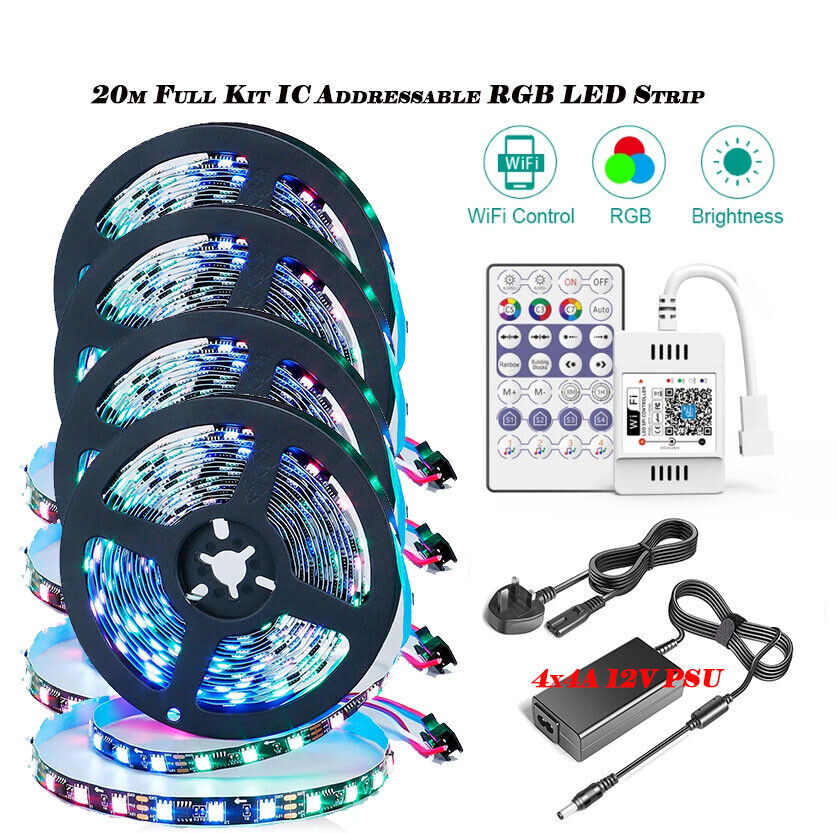

20m Full Kit:
4x5m IC Addressable 12V 5050 RGB LED Strip
1xSmart SPI WIFI Controller
4x12V 4A 48W POWER UK ADAPTER
Q&A
What Are Addressable LED Strips?
Addressable LED strips are light strips that have unique chips that allow you to control individual LEDs or groups of them. This extra provision to control a specific part of the strip is why they are referred to as ‘addressable’. It allows you to create different effects on different parts of the LED strip all at once or in intervals. It is ideal for depicting animations and similar dynamic displays.
How Do Addressable LED Strips Work?
The working of an addressable LED strip is a concerted effort of different parts. They include:
Integrated circuit chips
Light-emitting diodes (LEDs)
A power source
A controller
Each LED has a dedicated integrated circuit chip. This is what makes it possible for you to control individual LEDs. The controllers used to manipulate them are also unique; they have data channels to relay commands and not just matching RGB pins like those of typical RGB LED strips.
With that in mind, the addressable LED strip thus works as follows:
When the power source is turned on, a direct current flows to the LEDs causing them to light on default settings.
To create an effect, you would input a command on the controller to address the particular LEDs you would like to control.
The controller then relays a corresponding signal to the integrated circuit chips on those LEDs.
The circuit chips execute the command instantly or store it for a timed execution if, for instance, you have entered a timed-interval lighting effect.
What is the difference between addressable RGB and RGB?
ARGB (Addressable RGB) is a lighting technology that is simply a more advanced version of RGB. While RGB lighting can only be set to display a single color across its LED’s, ARGB gives you control over each individual LED. Impressive color cycling, flashing, sound syncing, and more can be done with ARGB.
For example, an RGB lighting strip may have 100 individual LED lights, but all 100 of those lights will always show the same color at a given time. An ARGB lighting strip containing 100 individual LED’s could have 100 different colors showing at once
| bundle | 5m Strip+4A Power Supply+WiFi Controller, 10m Strip+2x4A Power Supply+WiFi Controller, 20m Strip+4x4A Power Supply+WiFi Controller, 5m LED Strip Only, WiFi Controller Only, 25m Strip+5x4A Power Supply+WiFi Controller, 15m Strip+3x4A Power Supply+WiFi Controller, 5A 12V UK Power Supply |
|---|---|
| Department | Unisex Kids,Unisex Adults |
| Output Voltage | 12 V |
| Energy Efficiency Rating | A+++ |
| Features | Adjustable,Colour-Changing,RGB,Waterproof |
| LED String/Strip Type | WS2811 |
| Voltage | 12 V |
| Control Style | App Control,Remote Control,Voice |
| Type | String Light |
| Brand | WRLED |
| Light Colour | Multicoloured |
| Colour | Multicoloured |
| Installation Area | Indoor |
| Number of Lights | 300-1200 |
| Size | 5m,10m,15m,20m |
| Occasion | All Occasions,Birthday,Christmas,Party |
| Power Source | Corded |
| LED Chip Code | 5050 |
| Lighting Technology | LED |
